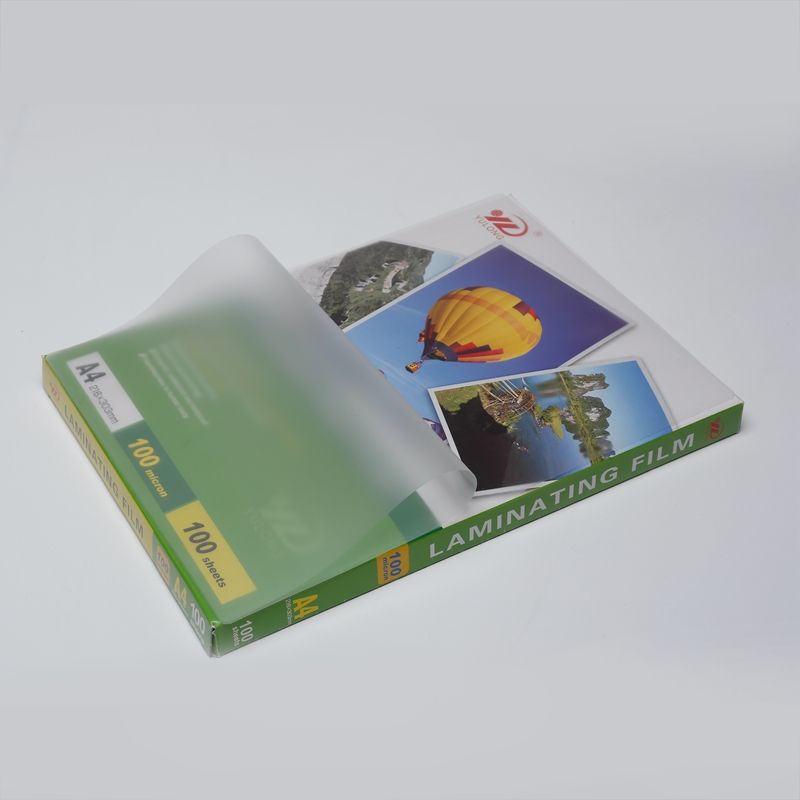

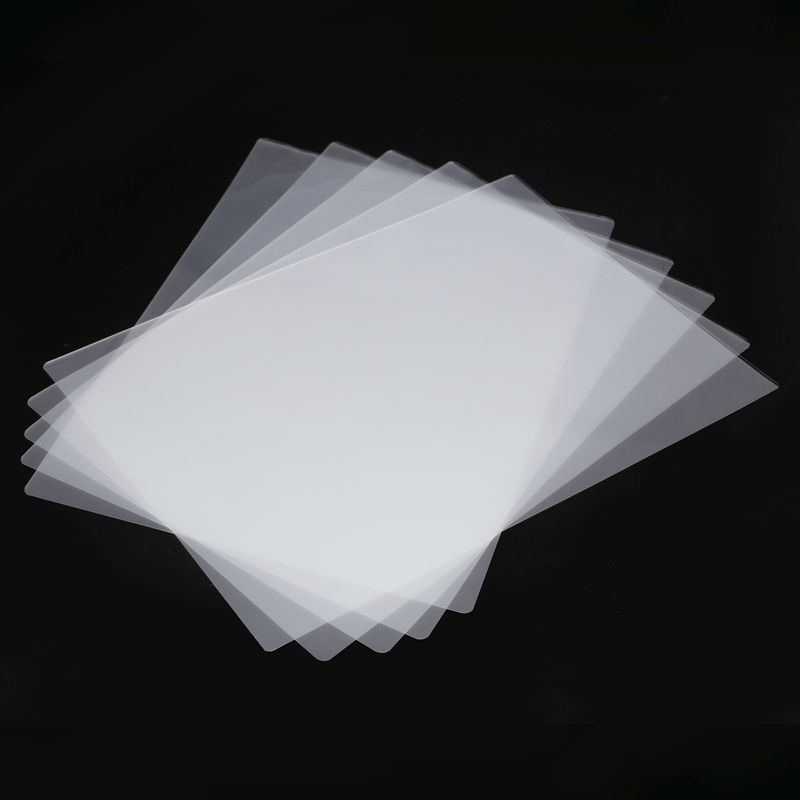

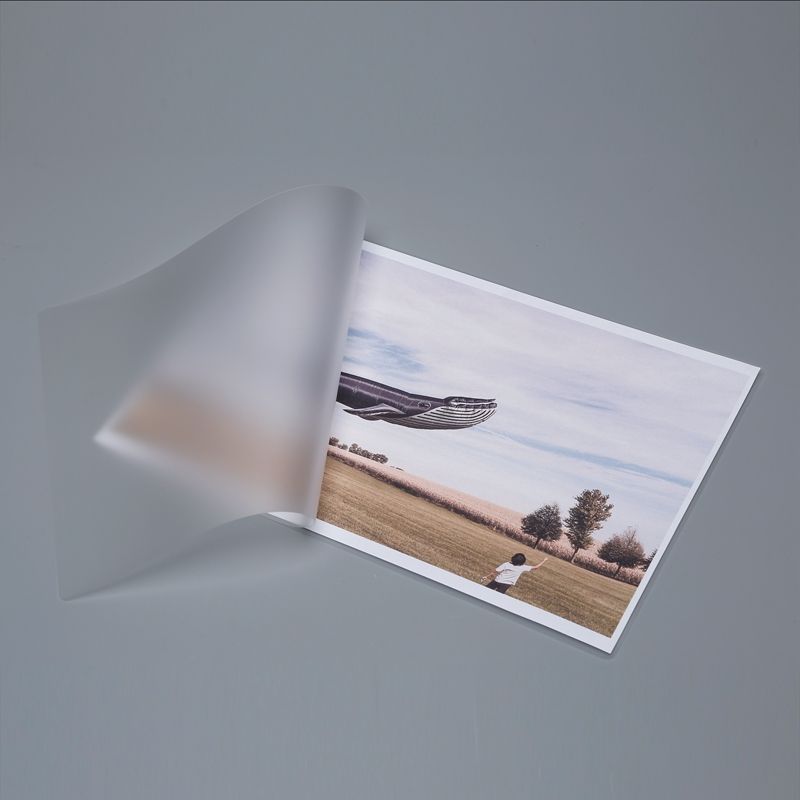

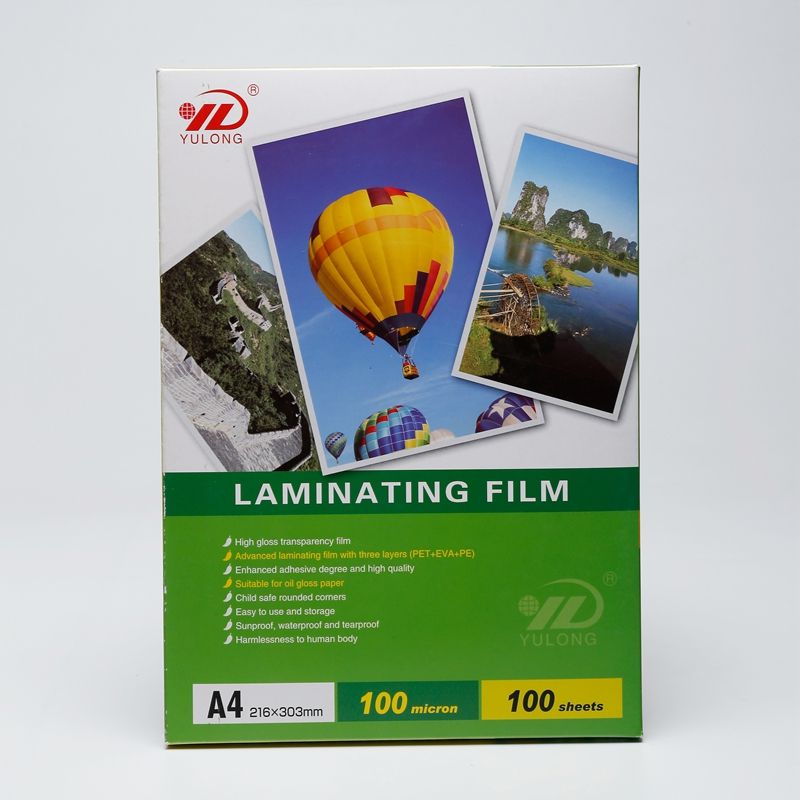

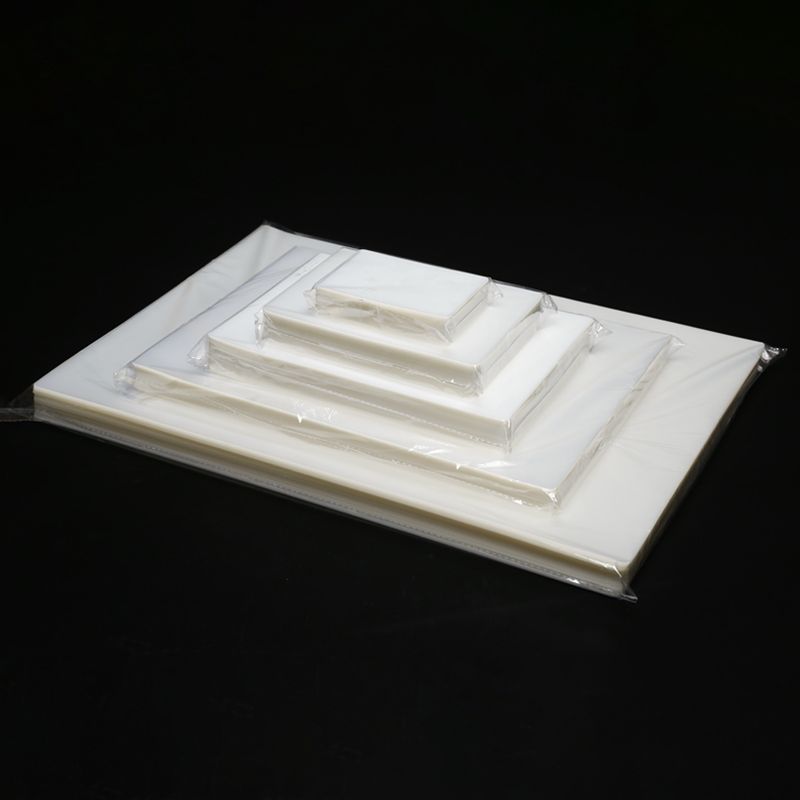

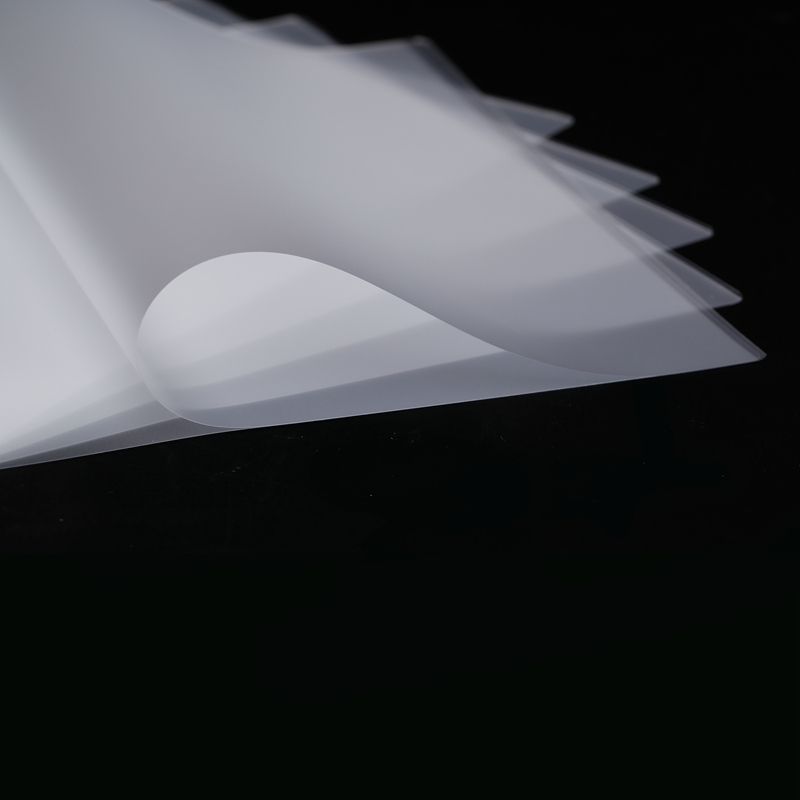

Premium Laminating Pouch(Three-layers)
Premium Laminating Pouch(Three-layers)Three-layers laminating film is composed of various layers of plastic. The harder layer is on the outside and soft layer is on the inside. The harder outer layer is made from PET plastic film and the soft inner layer is made of PE and EVA plastic. These layers make up the thickness, which measured by micron or mil. The ration of PET, PE and EVA will change the hardness of film.
|
Laminating Film Type |
Tear Test results |
|
Standard Laminating Film |
23.5N-55.5N |
|
Three–layers Laminating Film |
52.8N-68.8N |
Thickness composition data sheet
|
Thickness |
60mic |
75mic |
80mic |
100mic |
125mic |
150mic |
175mic |
|
|
PET/PE/EVA |
38/11/11 |
38/19/18 |
50/15/15 |
50/25/25 |
75/25/25 |
75/38/37 |
100/25/25 |
100/38/37 |
|
Thickness |
200mic |
250mic |
|
|
|
|
|
|
|
PET/PE/EVA |
125/38/37 |
150/50/50 |
175/38/37 |
|
|
|
|
|
Suitable size for different market
Asia
|
|
B5 |
A4 |
B4 |
A3 |
F4 |
/ |
Credit Card |
Key Card |
|
Size(mm*mm) |
188*263 |
216*303 |
263*370 |
303*426 |
225*310 |
225*340 |
54*86 |
65*95 |
|
|
Card Size |
Card Size |
Photo Size |
A6 |
A5 |
/ |
A2 |
|
Size(mm*mm) |
70*100 |
75*105 |
95*135 |
111*154 |
154*216 |
310*450 |
426*600 |
Europe/Africa/Oceania
|
|
Card Size |
Badge Size |
Photo Size |
A5 |
A4 |
A3 |
|
Size(mm*mm) |
60*90 |
67*99 |
100*150 |
154*216 |
216*303 |
303*426 |
USA
|
|
Business Card |
ID Card |
Luggage Tag with slot |
File Card |
|
Size(in) |
2-1/4’’*3-3/4’’ |
2-5/8’’*3-7/8’’ |
2-1/2’’*4-1/4’’ |
3-1/2’’*5-1/2’’ |
|
|
Photo Size |
Letter Size |
Menu Size |
Legal Size |
|
Size(in) |
4-1/2’’*6-1/4’’ |
9’’*11-1/2’’ |
12’’*18’’ |
9’’*14-1/2’’ |
Widely used in workplace, school and daily life for office documents, ID cards, driving licenses, previous photos, menus, business licenses and much more lamination. Especially it’s suitable for oily printing material such as advertising flayer lamination.
High transparency with light transmittance≥90%
Enhanced adhesive property increased by 30%
Protect laminated material from water, sunlight exposure and acid.
